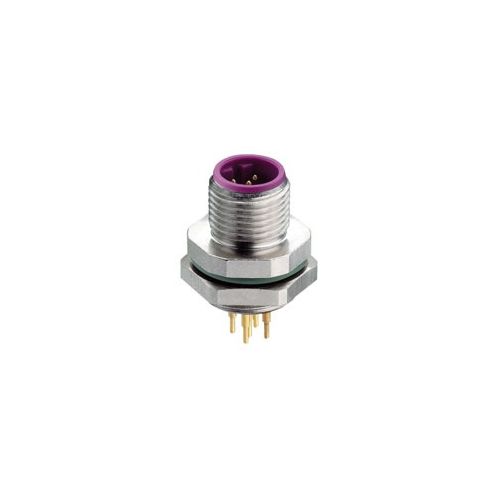

0976 PMC 152 | 25006 | Connector
Receptacle Connector, M12 male 5 pole
| Complete Electronics Part No. | 25006 |
|---|---|
| Manufacturers Part No. | 25006 |
| Type: | Recptacle Connector |
| Termination: | PCB Mount |
| Mounting: | Front Mounting |
| PCB Connector Mounting | PCB Straight |
| Coded Option (Circular) | B |
| Male/Female: | Male M12 |
| Number of poles | 5 |
| Protocol: | Profibus |
| Rated Voltage: | 60V |
| Rated Current: | 4A at 40°C |
| IP Rating: | IP67 |
Description
0976 PMC 152
Receptacle Connector
- For front mounting
- M12 male connector
- Printed contacts
- 5 Poles
- B Coding
- Especially suited for Profibus
- Chassis side thread PG9
