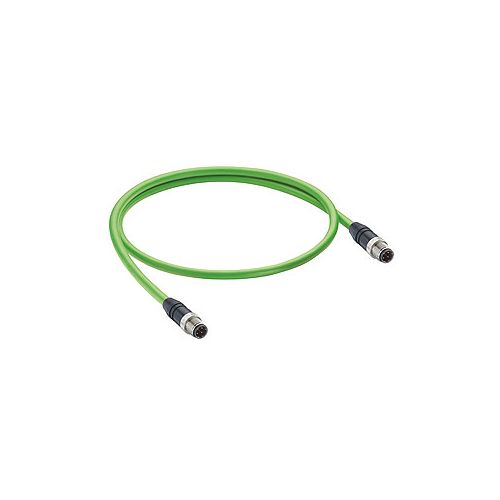

0985 342 100/0,5 M | 69453 | Cordset
ProfiNet Type C Cordset, M12 male - M12 male, 4 pole, cable length 0.5 metres
| Complete Electronics Part No. | 69453 |
|---|---|
| Manufacturers Part No. | 69453 |
| Type: | Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Male - M12 Male |
| Coded Option (Circular) | D |
| Cable Entry: | Straight |
| Number of poles | 4 |
| Protocol: | ProfiNet Type C |
| Rated Voltage: | 250V |
| Rated Current: | 4A at 40°C |
| Cable Length: | 0.5 Metre |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
0985 342 100/0,5 M
M12 Cord set, double-ended
- M12-M12, Industrial Ethernet Data cable according to ProfiNet type C
- Moulded on both sides with M12 male connectors
- D coded according to IEC 61076-2-101
- 4 poles
- PUR jacket, halogen-free, shielded, green
- 0,5 metre
