0985 342 130/5 M | 09853421305M | 934726002 | Cordset

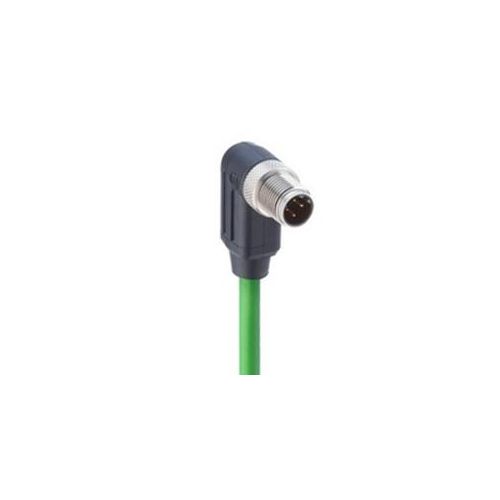

Cordset, single-ended, M12 Industrial Ethernet data cable, M12 male connector, right angled, D coded, 4 poles, PUR jacket, halogen-free, screened, green, 5 metres
| Complete Electronics Part No. | 09853421305M |
|---|---|
| Manufacturers Part No. | 0985 342 130/5 M |
| Type: | Cordset (Shielded) |
| Cordset Type: | Single Ended |
| Cordset Gender M12: | M12 Male |
| Coded Option (Circular) | D |
| Cable Entry: | Right Angled |
| Number of poles | 4 |
| Protocol: | Industrial Ethernet |
| Rated Voltage: | 250V |
| Rated Current: | 4A |
| Cable Length: | 5 Metres |
| Cable Jacket: | PUR |
| IP Rating: | IP67 / 68 / 69K |
Description
0985 342 130/5 M
Cordset, single-ended
- M12 Industrial Ethernet data cable
- moulded on one side with M12 male connector
- with threaded joint
- right angled version
- D coded
- 4 poles
- 360° shielding connected to knurled screw
- colour coding of the conductor acc. to Euro-standard
- PUR jacket
- halogen-free
- screened
- green
- 5 metres.
