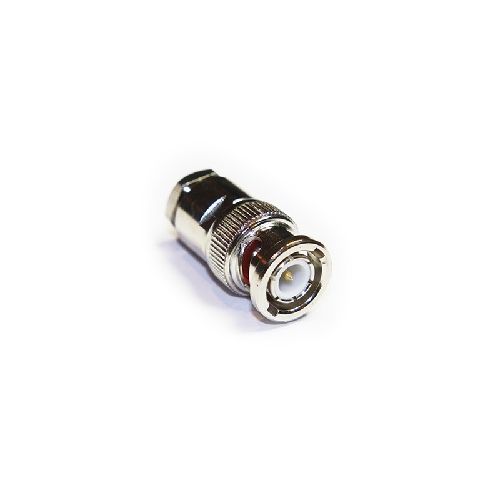

10-001-A3-AH | 10001A3AH | BNC Top Hat Straight Plug
BNC 50 ohm straight clamp plug with gold plated soldered centre contact. Suitable for RG58 or similar cables in group AH.
| Complete Electronics Part No. | 10001A3AH |
|---|---|
| Manufacturers Part No. | 10-001-A3-AH |
| Working Frequency | Up To 3 GHz |
Description
Electrical Specification
- Impedance 50 Ohm
- Frequency Range Up to 3GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Centre Contact Termination Solder
- Outer Contact Termination Clamp
- Mating Cycles 250
- Contact Retention 10N min
- Cable Retention 100N min
- Weight 15.5g
- Mating Force 13.6N max
- Un-Coupling Force 13.6N max
- Operating Temperature -55 to +155°C
- IP Rating ( Mated ) IP64
Materials
- Centre Contact: Brass
- Outer Contact Brass
- Insulator PTFE
- Centre Contact Plating Gold
- Outer Contact Plating Nickel
- Suitable for RG58 or similar cables in group AH
- Pack Size 1
