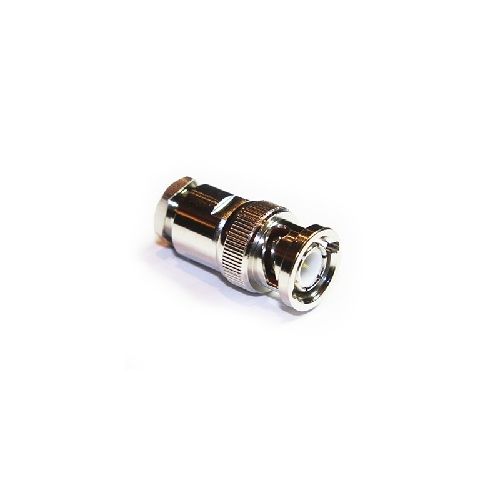

10-002-A3-AH | 10002A3AH | BNC Solder / Clamp Plug
BNC 50 ohm straight clamp plug with gold plated soldered centre contact. Suitable for RG58 or similar cables in group AH.
| Complete Electronics Part No. | 10002A3AH |
|---|---|
| Manufacturers Part No. | 10-002-A3-AH |
| Working Frequency | Up To 3 GHz |
Description
Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 3GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS3 Compliant
Centre Contact Termination Solder
Outer Contact Termination Clamp
Mating Cycles 250
Contact Retention 10N min
Cable Retention 100N min
Weight 16g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Operating Temperature -55 to +155°C
IP Rating ( Mated ) IP64
Materials
Centre Contact: Brass
Outer Contact Brass
Insulator PTFE
Bayonet Cap Zinc
Centre Contact Plating Gold
Outer Contact Plating Nickel
Suitable for RG58 or similar cables in group AH
Pack Size 1
