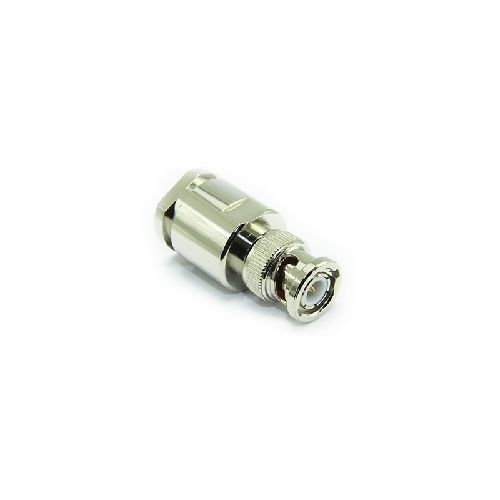

10-002-B3-AN | 10002B3AN | BNC Solder / Clamp Plug
BNC 50 ohm straight clamp plug with gold plated soldered centre contact. Suitable for RG213 or similar cables in group AN.
| Complete Electronics Part No. | 10002B3AN |
|---|---|
| Manufacturers Part No. | 10-002-B3-AN |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
- Impedance 50 Ohm
- Frequency Range Up to 6GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Clamp
- Mating Cycles: 250
- Contact Retention: 10N min
- Cable Retention: 150N min
- Weight: 35.9g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -55 to +155°C
- IP Rating ( Mated ): IP64
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: PTFE
- Bayonet: Cap Zinc
- Centre Contact Plating: Gold
- Outer Contact Plating: Nickel
- Suitable for RG213 or similar cables in group AN
- Pack Size 1
