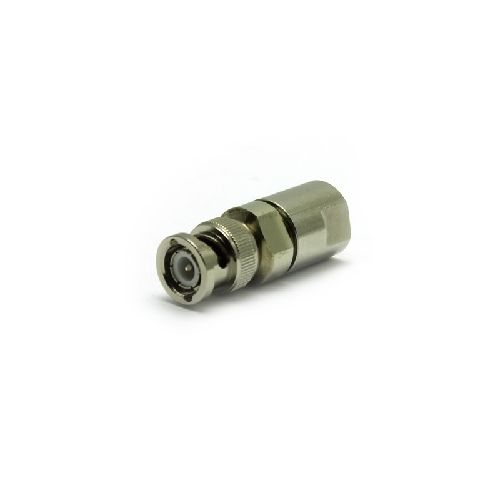

10-003-P3-RB | 10003P3RB | BNC Easy Fit / Clamp Plug

BNC 50 ohm straight Easy Fit ( Push On ) Contact with a Double Nut Type Clamp System Plug. Suitable for SCF14-50J Helix Cable
More Information
Complete Electronics Part No 10003P3RB
Manufacturers Part No. 10-003-P3-RB
Working Frequency Up To 3 GHz
Description

Electrical Specification

  • Impedance 50 Ohm
  • Frequency Range Up to 3GHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Design Standard  IEC 60169-17
  • RoHS3 Compliant
  • Centre Contact Termination: Easy Fit
  • Outer Contact Termination: Clamp
  • Mating Cycles: 500
  • Contact Retention:  10N min
  • Cable Retention:  100N min
  • Weight:  40.07g
  • Mating Force: 13.6N max
  • Un-Coupling Force: 13.6N max
  • Operating Temperature: -30 to +70°C
  • IP Rating ( Mated ):  IP64

Materials

  • Centre Contact: Phosphor Bronze
  • Outer Contact: Brass
  • Insulator:  PTFE
  • Bayonet: Cap Zinc
  • Centre Contact Plating: Silver
  • Outer Contact Plating: White Bronze
  • Suitable for SCF14-50J Helix Cable
  • Pack Size 1
