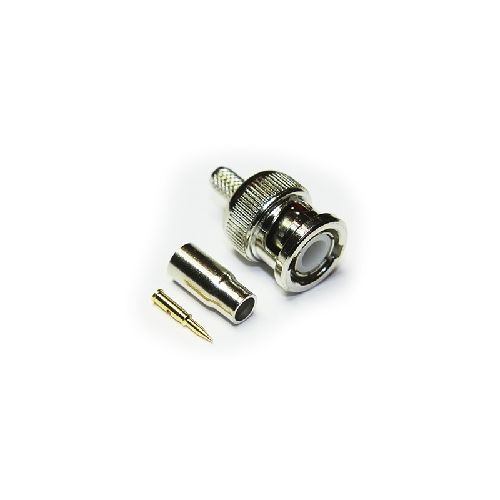

10-005-A0-AF | 10005A0AF | BNC 75 ohm Straight Crimp / Crimp Plug

BNC 75 ohm Straight Crimp / Crimp Plug,Suitable for Mini RG59 black or similar cables in group AF.
More Information
Complete Electronics Part No. 10005A0AF
Manufacturers Part No. 10-005-A0-AF
Working Frequency Up To 1 GHz
Description

Electrical Specification

Impedance 75 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm

Mechanical Specification

Design Standard  IEC 61169-8
RoHS3 Compliant
Centre Contact Termination: Crimp
Outer Contact Termination: Crimp
Mating Cycles: 250
Contact Retention:  10N min
Cable Retention:  50N min
Weight:  9.35g
Mating Force: 13.6N max
Un-Coupling Force: 13.6N max
Operating Temperature: -30 to +70°C
IP Rating (Mated):  IP64

Materials

Centre Contact: Brass
Outer Contact:  Brass
Insulator:  Delrin
Bayonet Cap Zinc
Centre Contact Plating: Gold
Outer Contact Plating: Nickel
Suitable for Mini RG59 black or similar cables in group AF
Pack Size 1
