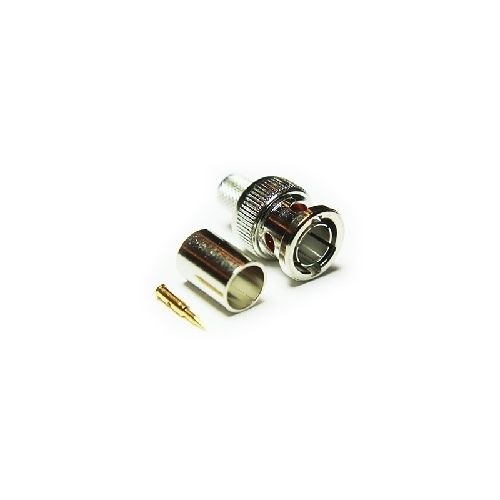

10-005-A0-CB | 10005A0CB | BNC 75 ohm Straight Crimp / Crimp Plug
BNC 75 ohm Straight Crimp / Crimp Plug, Suitable for CT100RBS or similar cables in group CB.
| Complete Electronics Part No. | 10005A0CB |
|---|---|
| Manufacturers Part No. | 10-005-A0-CB |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS3 Compliant
Centre Contact Termination: Crimp
Outer Contact Termination: Crimp
Mating Cycles: 250
Contact Retention: 10N min
Cable Retention: 60N min
Weight: 10.6g
Mating Force: 13.6N max
Un-Coupling Force: 13.6N max
Operating Temperature: -30 to +70°C
IP Rating (Mated): IP64
Materials
Centre Contact: Brass
Outer Contact: Brass
Insulator: Delrin
Bayonet Cap Zinc
Centre Contact Plating: Gold
Outer Contact Plating: Nickel
Suitable for CT100RBS or similar cables in group CB
Pack Size 1
