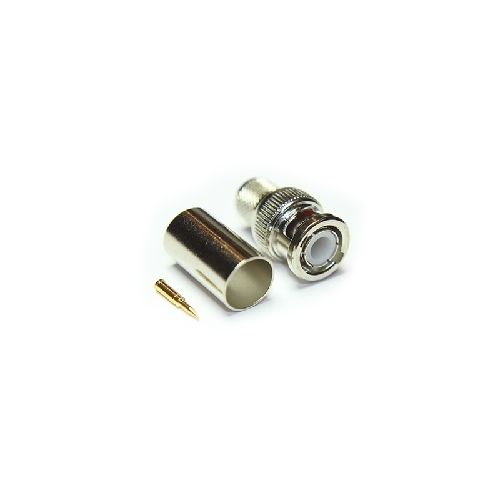

10-005-A0-CD | 10005A0CD | BNC 75 ohm Straight Crimp / Crimp Plug
BNC 75 ohm Straight Crimp / Crimp Plug, Suitable for CT125RBS or similar cables in group CD.
| Complete Electronics Part No. | 10005A0CD |
|---|---|
| Manufacturers Part No. | 10-005-A0-CD |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 1GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 250
- Contact Retention: 10N min
- Cable Retention: 60N min
- Weight: 14.3g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -30 to +70°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: Delrin
- Bayonet Cap Zinc
- Centre Contact Plating: Gold
- Outer Contact Plating: Nickel
- Suitable for CT125RBS or similar cables in group CD.
- Pack Size 1
