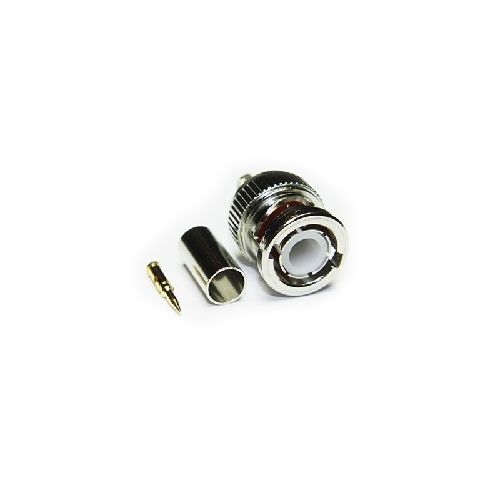

10-005-A3-AP | 10005A3AP | BNC Straight Crimp / Crimp Plug
BNC 50 ohm straight crimp plug, for applications up to 1GHz. Suitable for URM202 or similar cables in group AP
| Complete Electronics Part No. | 0005A3AP |
|---|---|
| Manufacturers Part No. | 10-005-A3-AP |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS3 Compliant
Centre Contact Termination: Crimp
Outer Contact Termination: Crimp
Mating Cycles: 250
Contact Retention: 10N min
Cable Retention: 150N min
Weight: 8.75g
Mating Force: 13.6N max
Un-Coupling Force: 13.6N max
Operating Temperature: -30 to +70°C
IP Rating (Mated): IP64
Materials
Centre Contact: Brass
Outer Contact: Brass
Insulator: Delrin
Bayonet: Cap: Zinc
Centre Contact Plating: Gold
Outer Contact Plating: Nickel
Suitable for URM202 or similar cables in group AP
Pack Size 1
