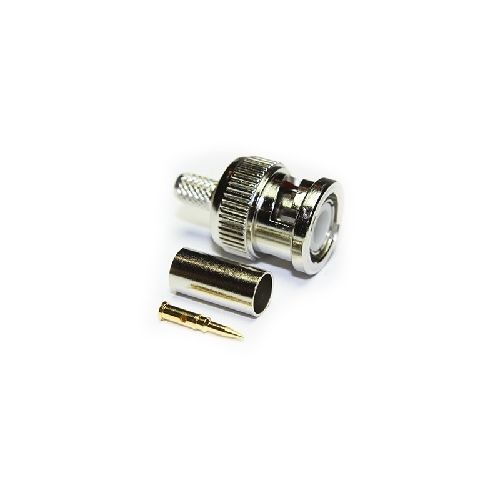

10-005-A3-AU | 10005A3AU | BNC Straight Crimp / Crimp Plug
BNC 50 ohm straight crimp plug, for applications up to 1GHz. Suitable for RG142 or similar cables in group AU
| Complete Electronics Part No. | 0005A3AU |
|---|---|
| Manufacturers Part No. | 10-005-A3-AU |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
- Impedance 50 Ohm
- Frequency Range Up to 1GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 250
- Contact Retention: 10N min
- Cable Retention: 250N min
- Weight: 8.6g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -30 to +70°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: Delrin
- Bayonet: Cap: Zinc
- Centre Contact Plating: Gold
- Outer Contact Plating: Nickel
- Suitable for RG142 or similar cables in group AU
- Pack Size 1
