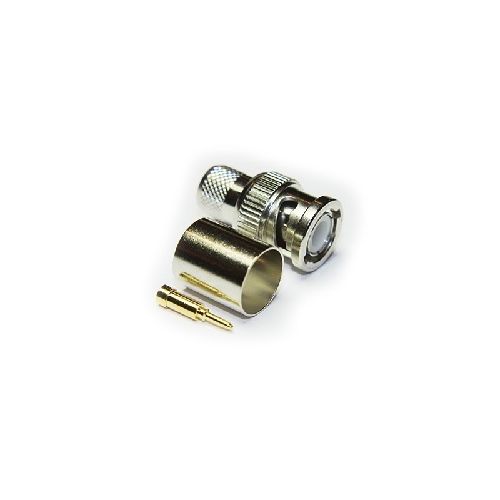

10-005-B3-DE | 10005B3DE | BNC Straight Crimp / Crimp Plug
BNC 50 ohm straight crimp plug, for applications up to 11GHz. Suitable for LMR400 cable or similar
| Complete Electronics Part No. | 0005B3DE |
|---|---|
| Manufacturers Part No. | 10-005-B3-DE |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 11GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS3 Compliant
Centre Contact Termination: Solder
Outer Contact Termination: Crimp
Mating Cycles: 500
Contact Retention: 10N min
Cable Retention: 150N min
Weight: 14.56g
Mating Force: 13.6N max
Un-Coupling Force: 13.6N max
Operating Temperature: -55 to +155°C
IP Rating (Mated): IP64
Materials
Centre Contact: Brass
Outer Contact: Brass
Insulator: PTFE
Bayonet: Cap: Zinc
Centre Contact Plating: Gold
Outer Contact Plating: Nickel
Suitable for LMR400 cable or similar
Pack Size 1
