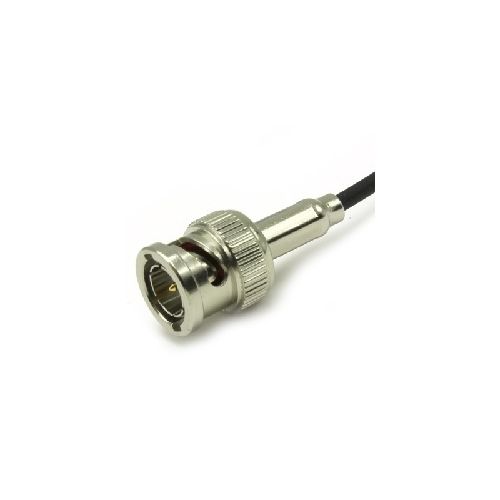

10-005-B36-1-AB | 10005B361AB | BNC 75 ohm Straight Crimp Plug
BNC 75 ohm Straight Crimp / Crimp Plug, Suitable for RG179 or similar cables in group AB
| Complete Electronics Part No. | 10005B361AB |
|---|---|
| Manufacturers Part No. | 10-005-B36-1-AB |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
-
Impedance 75 Ohm
-
Frequency Range Up to 6GHz
-
Dielectric Withstand Voltage 1500 Veff
-
Insulation Resistance 5000 M-Ohm
-
Return Loss: better than -24db at 4.5 GHz
-
High Definition
-
True 75ohm (3G)
Mechanical Specification
-
Design Standard IEC 61169-8
-
RoHS3 Compliant
-
Centre Contact Termination: Crimp
-
Outer Contact Termination: Crimp
-
Mating Cycles: 500
-
Contact Retention: 10N min
-
Cable Retention: 60N min
-
Weight: 11.5g
-
Mating Force: 13.6N max
-
Un-Coupling Force: 13.6N max
-
Operating Temperature: -55 to +155°C
-
IP Rating (Mated): IP64
Materials
-
Centre Contact: Brass
-
Outer Contact: Brass
-
Insulator: Delrin
-
Bayonet Cap Zinc
-
Centre Contact Plating: Gold
-
Outer Contact Plating: Nickel
-
Suitable for RG179 or similar cables in group AB
-
Designed to use preferred 5.41mm Hex Crimp Tooling
-
Pack Size 1
