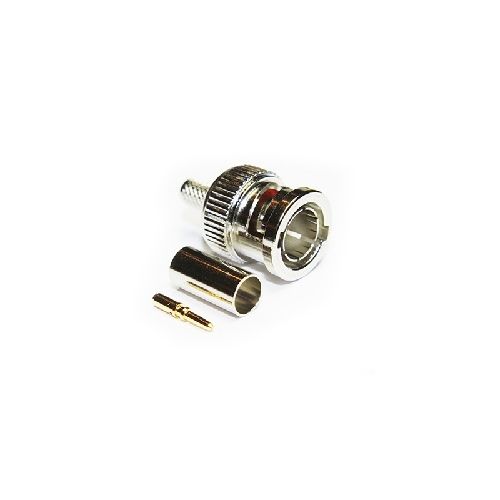

10-005-B36-FA | 10005B36FA | BNC 75 ohm Straight Crimp Plug
BNC 75 ohm Straight Crimp / Crimp Plug, Suitable for all cables in group FA.
| Complete Electronics Part No. | 10005B36FA |
|---|---|
| Manufacturers Part No. | 10-005-B36-FA |
| Working Frequency | Up To 4.5 GHZ |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 4.5GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
- Return Loss: -12dB@6GHz
- High Definition
- True 75ohm
- SMPTE 424m
- Tested to 18GHz
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 500
- Contact Retention: 10N min
- Cable Retention: 100N min
- Weight: 9g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: PTFE
- Bayonet Cap Zinc
- Centre Contact Plating: Gold
- Outer Contact Plating: Nickel
- Suitable for all cables in group FA
- Pack Size 1
