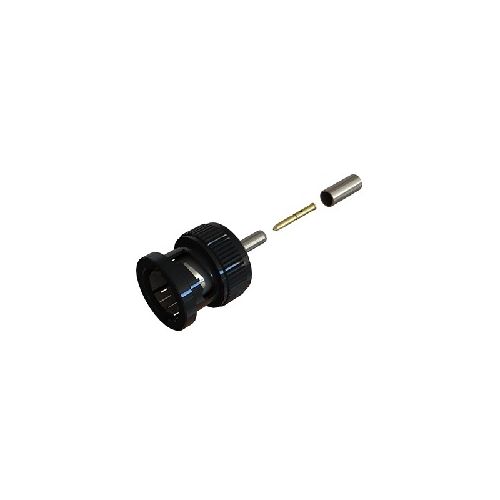

10-005-T36-AB | 10005T36AB | BNC 75 ohm Straight Crimp Plug
BNC 75 ohm Straight Crimp / Crimp Plug, Suitable for RG179 or similar cables in group AB
| Complete Electronics Part No. | 10005T36AB |
|---|---|
| Manufacturers Part No. | 10-005-T36-AB |
| Working Frequency | Up To 3 GHz |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 3GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
- True 75 ohm
- Return Loss: [email protected]
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 500
- Contact Retention: 10N min
- Cable Retention: 60N min
- Weight: 9.1g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
- Black Coupling Cap
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: PTFE
- Bayonet Cap Brass
- Centre Contact Plating: Gold
- Outer Contact Platingel: Nickel
- Suitable for RG179 or similar cables in group AB
- Pack Size 1
