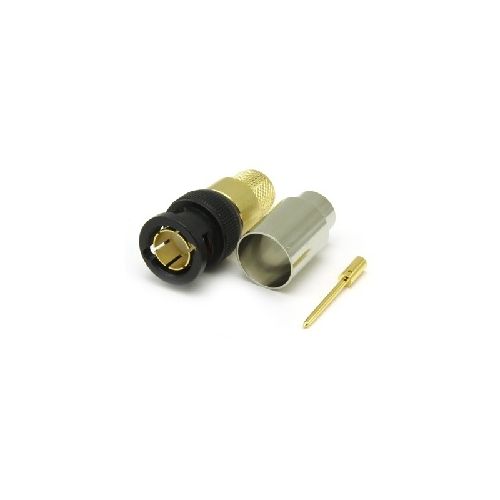

10-005-W126-FI | 10005W126FI | BNC 75 ohm Straight Crimp Plug
BNC 75 ohm Straight Crimp / Ultra HD KORUS Crimp Plug, Suitable for cables in group FI.
| Complete Electronics Part No. | 10005W126FI |
|---|---|
| Manufacturers Part No. | 10-005-W126-FI |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 12GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
- Return Loss: -20dB@12GHz
- True 75 ohm
- Ultra HD High Performance
- SMPTE ST 2081-1 & ST 2082-1
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 500
- Contact Retention: 10N min
- Cable Retention: 150N min
- Weight: 11.11g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Platingel: Gold
- Bayonet Cap : Brass
- Suitable for cables in group FI
- Pack Size 1
