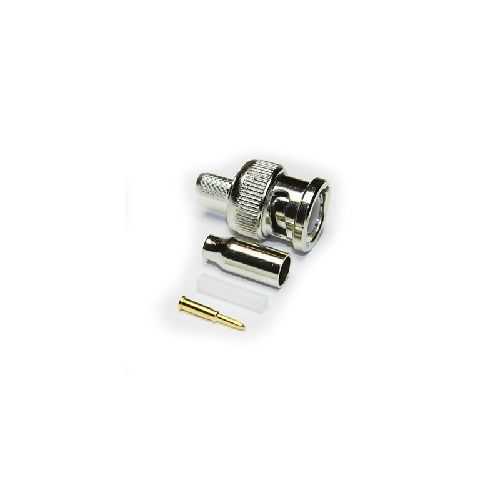

10-006-A0-AB | 10006A0AB | BNC 75 ohm Straight Crimp Plug (4 Part)
BNC 75 ohm Straight Crimp / Crimp Plug, Suitable for RG179 or similar cables in group AB.
| Complete Electronics Part No. | 10006A0AB |
|---|---|
| Manufacturers Part No. | 10-006-A0-AB |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 1GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
- Return Loss: -27.1 dB@1GHz
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 250
- Contact Retention: 10N min
- Cable Retention: 60N min
- Weight: 9.35g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -30 to +70°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: Delrin
- Centre Contact Plating: Gold
- Outer Contact Plating: Nickel
- Bayonet Cap : Zinc
- Suitable for RG179 or similar cables in group AB
- Pack Size 1
