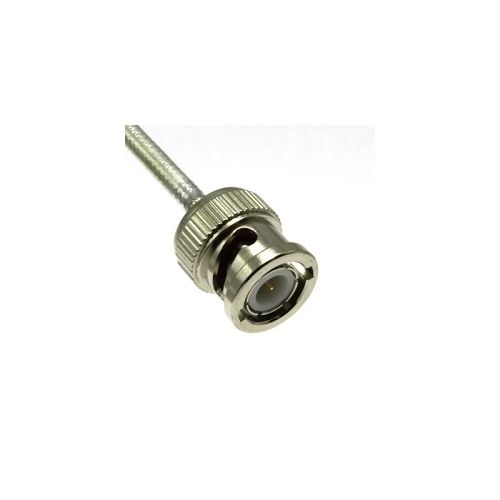

10-014-D3-HB | 10014D3HB | BNC Straight Solder Plug
BNC 50 ohm straight solder plug, for applications up to 1GHz. For direct solder termination to RG402 (0.141" semi rigid) cable.
| Complete Electronics Part No. | 10014D3HB |
|---|---|
| Manufacturers Part No. | 10-014-D3-HB |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS3 Compliant
Centre Contact Termination: Solder
Outer Contact Termination: Solder
Mating Cycles: 250
Contact Retention: 10N min
Cable Retention: 200N min
Weight:
Mating Force: 13.6N max
Un-Coupling Force: 13.6N max
Operating Temperature: -55 to +155°C
IP Rating (Mated): IP64
Materials
Centre Contact: Brass
Outer Contact: Brass
Insulator: PTFE
Bayonet: Cap: Zinc
Centre Contact Plating: Gold
Outer Contact Plating: Nickel
For direct solder termination to RG402 (0.141" semi rigid) cable
Pack Size 1
