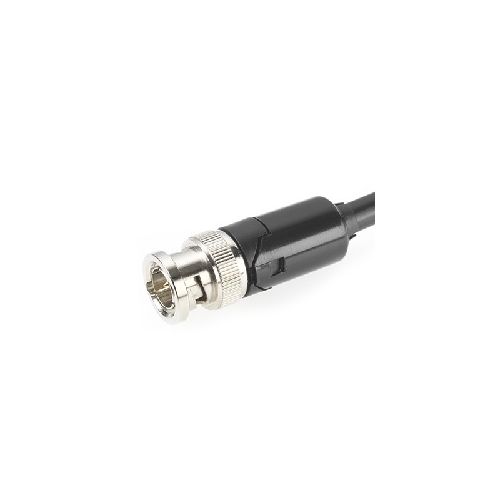

10-021-A0-AI-50 | 10021A0AI50 | BNC 75 ohm Straight Crimp Plug
BNC 75 ohm Straight Spring Lock Fast Termination Plug for easy fit to RG59 or similar cables in group AI.
| Complete Electronics Part No. | 10021A0AI50 |
|---|---|
| Manufacturers Part No. | 10-021-A0-AI-50 |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 1GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Centre Contact Termination: Spring Lock
- Outer Contact Termination: Spring Lock
- Mating Cycles: 250
- Contact Retention: 10N min
- Cable Retention: 120N min
- Weight: 20.25g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -30 to +70°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Phodphor Bronze
- Outer Contact: Brass
- Insulator: Delrin
- Centre Contact Plating: Gold
- Outer Contact Plating: Nickel
- Bayonet Cap : Brass
- Suitable for RG59 or similar cables in group AI
- Pack Size 50
Assembly Instructions HERE
