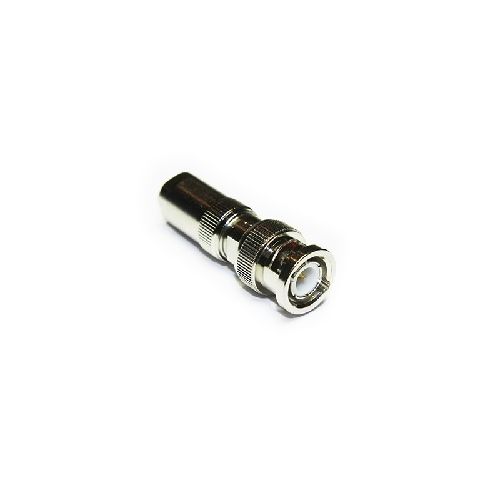

10-021-A0-CA | 10021A0CA | BNC 75 ohm Straight Crimp Plug
BNC 75 ohm Straight Secure Fit Solder / Screw Lock Plug for easy fit to RG6 or similar cables in group CA.
| Complete Electronics Part No. | 10021A0CA |
|---|---|
| Manufacturers Part No. | 10-021-A0-CA |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 1GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Screw Lock
- Mating Cycles: 100
- Contact Retention: 10N min
- Cable Retention: 200N min
- Weight: 20g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating: Nickel
- Bayonet Cap : Brass
- Suitable for RG6 or similar cables in group CA
- Pack Size 1
