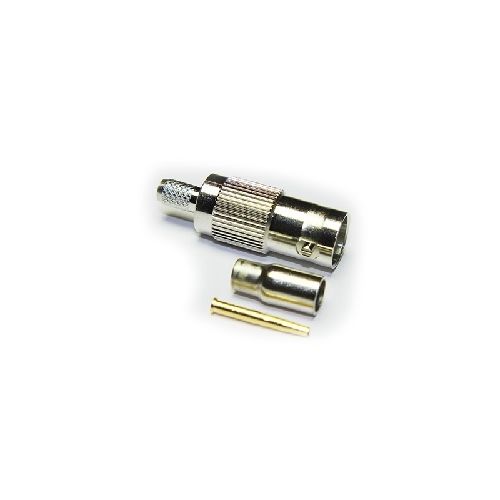

10-054-A0-BC | 10054A0BC | BNC Straight Crimp / Crimp Jack

BNC Straight Crimp / Crimp Jack, Suitable for BT2003 or similar cables in group BC.
More Information
Complete Electronics Part No. 10054A0BC
Manufacturers Part No. 10-054-A0-BC
Working Frequency Up To 1 GHz
Description

Electrical Specification

  • Impedance 75 Ohm
  • Frequency Range Up to 1GHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Design Standard  IEC 61169-8
  • RoHS3 Compliant
  • Centre Contact Termination: Crimp
  • Outer Contact Termination: Crimp
  • Mating Cycles: 250
  • Contact Retention:  10N min
  • Cable Retention: 50N min
  • Weight:  11.5g
  • Mating Force: 13.6N max
  • Un-Coupling Force: 13.6N max
  • Operating Temperature: -30 to +70°C
  • IP Rating (Mated):  IP64

Materials

  • Centre Contact: Phosphor Bronze
  • Outer Contact:  Brass
  • Insulator:  Delrin
  • Centre Contact Plating: Gold
  • Outer Contact Plating: Nickel
  • Suitable for BT2003 or similar cables in group BC.
  • Pack Size 1
