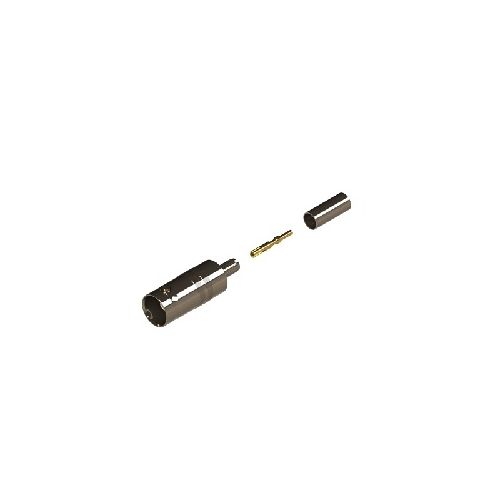

10-054-B126-EF1 | 10054B126EF1 | BNC Straight Crimp / Crimp Jack
BNC Straight Crimp / Crimp Jack, Suitable for all cables in group EF. Contact and crimp sleeve are annealed
| Complete Electronics Part No. | 10054B126EF1 |
|---|---|
| Manufacturers Part No. | 10-054-B126-EF1 |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 12GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
- Return Loss: -28dB@12GHz
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 500
- Contact Retention: 10N min
- Cable Retention: 100N min
- Weight: 8.47g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating: Nickel
- Suitable for all cables in group EF.
- Pack Size 1
