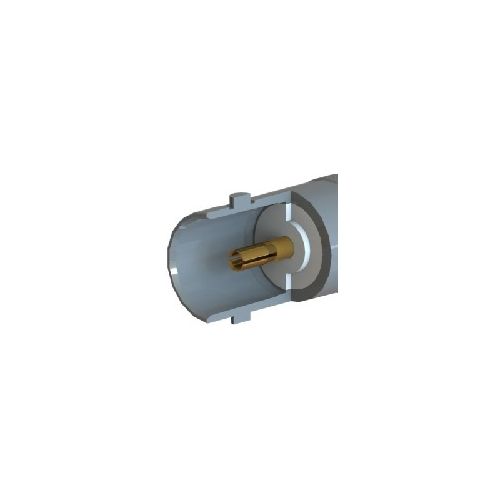

10-072-B6-1.5 | 10072B61.5 | BNC Edge Mount Solder Jack
BNC 75 ohm PCB Edge Mount Jack. Suitable for 1.5mm thick PCB, the centre contact is gold plated
| Complete Electronics Part No. | 10072B61.5 |
|---|---|
| Manufacturers Part No. | 10-072-B6-1.5 |
| Type | PCB Mounting |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 1GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Solder
- Mating Cycles: 250
- Contact Retention: 10N min
- Cable Retention: 50N min
- Weight:
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
