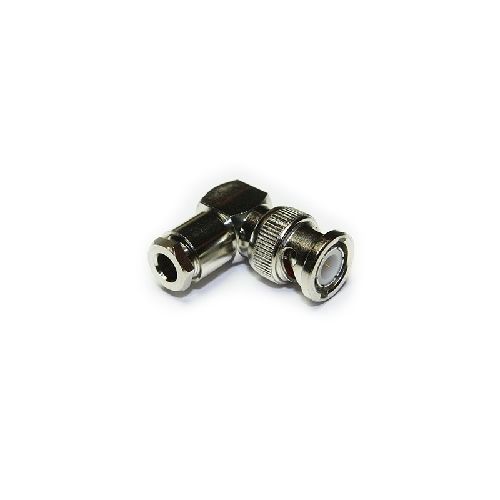

10-100-A3-AH | 10100A3AH | BNC R/A Solder/Clamp Plug
BNC 50 ohm Right Angled solder/clamp, 1GHz. Suitable for RG58 or similar cables in group AH
| Complete Electronics Part No. | 10100A3AH |
|---|---|
| Manufacturers Part No. | 10-100-A3-AH |
| Type | Right Angled |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS3 Compliant
Centre Contact Termination: Solder
Outer Contact Termination: Clamp
Mating Cycles: 250
Contact Retention: 10N min
Cable Retention: 100N min
Weight: 23.95g
Mating Force: 13.6N max
Un-Coupling Force: 13.6N max
Operating Temperature: -55 to +155°C
IP Rating (Mated): IP64
Materials
Centre Contact: Phosphor Bronze
Outer Contact: Brass
Insulator: PTFE
Centre Contact Plating: Gold
Outer Contact Plating: Nickel
Suitable for RG58 or similar cables in group AH
Pack Size 1
