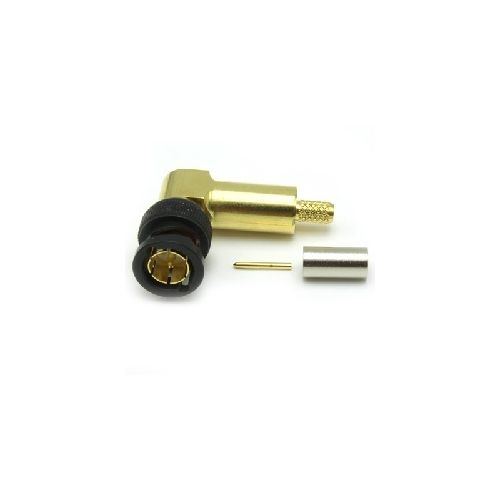

10-104--W66-FC | 10104W66FC | KORUS BNC 75 ohm R/A Crimp Plug
KORUS BNC 75 ohm R/A Crimp / Crimp Plug, Suitable for cables in group FC ** Now Tested to 18 GHz **
| Complete Electronics Part No. | 10104W66FC |
|---|---|
| Manufacturers Part No. | 10-104--W66-FC |
| Type | Right Angled |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance True75 Ohm
- Frequency Range Up to 12GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
- Return Lossl -11dB@12GHz
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 500
- Contact Retention: 10N min
- Cable Retention: 120N min
- Weight: 26.24g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating: Gold
- Suitable for cables in group FC
- Pack Size 1
