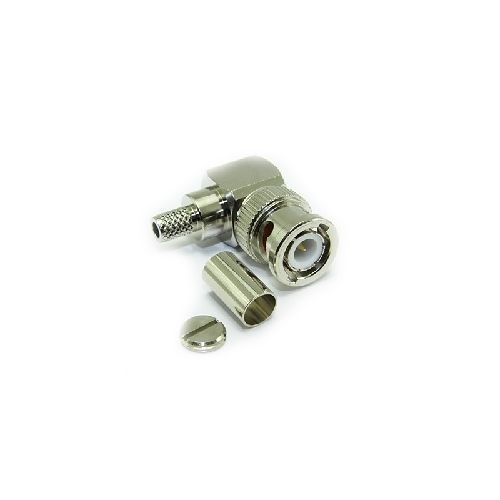

10-105-B3-AK | 10105B3AK | BNC R/A Crimp Plug
BNC 50 ohm Right Angled solder/clamp, 1GHz. Suitable for RG223 or similar cables in group AK.
| Complete Electronics Part No. | 10105B3AK |
|---|---|
| Manufacturers Part No. | 10-105-B3-AK |
| Type | Right Angled |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS3 Compliant
Centre Contact Termination: Solder
Outer Contact Termination: Crimp
Mating Cycles: 250
Contact Retention: 10N min
Cable Retention: 220N min
Weight: 26.2g
Mating Force: 13.6N max
Un-Coupling Force: 13.6N max
Operating Temperature: -55 to +155°C
IP Rating (Mated): IP64
Materials
Centre Contact: Brass
Outer Contact: Brass
Insulator: PTFE
Centre Contact Plating: Gold
Outer Contact Plating: Nickel
Suitable for RG223 or similar cables in group AK.
Pack Size 1
