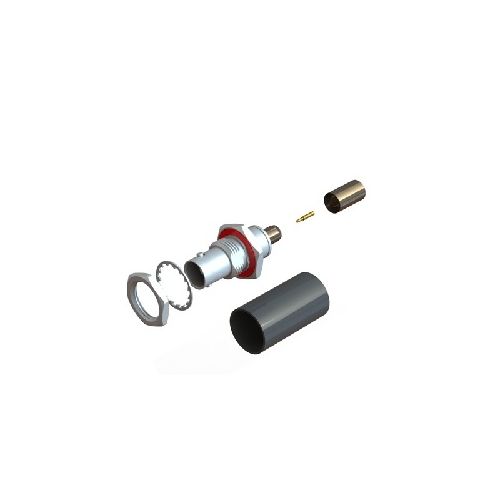

10-290-Q66-AI | 10290Q66AI | BNC Panel Mount Straight Crimp Jack
BNC Panel Rear Mount Crimp/Crimp Straight Jack, Adhesive lined heat shrink sleeve is included Suitable for RG59 or similar cables in group AI. IP68 Unmated
| Complete Electronics Part No. | 10290Q66AI |
|---|---|
| Manufacturers Part No. | 10-290-Q66-AI |
| Type | Panel / Bulkhead Mount |
| Working Frequency | Up To 3 GHz |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 3GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 500
- Contact Retention: 10N min
- Cable Retention: 120N min
- Weight: 26g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -30 to +70°C
- IP Rating (Unmated): IP68
Materials
- Centre Contact: Brylum Copper
- Outer Contact: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating: White Bronze
- Suitable for RG59 or similar cables in group AI
- Pack Size 1
