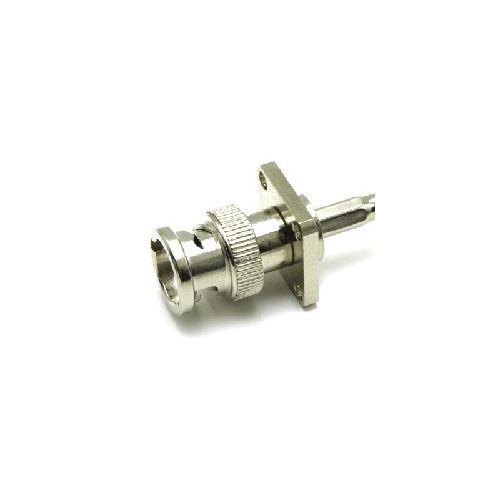

10-322-B3 | 10322B3 | BNC 4 Hole Panel mount Plug
BNC 50 ohm straight 4 hole flange mount plug with solder bucket contact
| Complete Electronics Part No. | 10322B3 |
|---|---|
| Manufacturers Part No. | 10-322-B3 |
| Type | Panel / Bulkhead Mount |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS3 Compliant
Centre Contact Termination: Solder
Outer Contact Termination: Solder
Mating Cycles: 250
Contact Retention: 10N min
Cable Retention: 50N min
Weight:
Mating Force: 13.6N max
Un-Coupling Force: 13.6N max
Operating Temperature: -30 to +70°C
IP Rating (Mated): IP64
Materials
Centre Contact: Phosphor Bronze
Outer Contact: Brass
Insulator: PTFE
Centre Contact Plating: Gold
Outer Contact Plating: Nickel
Straight 4 hole flange mount plug with solder bucket contact
Pack Size 1
