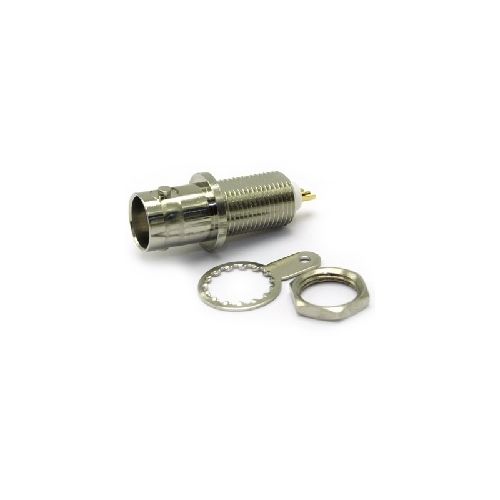

10-350-A3 | 10350A3 | BNC Panel Mount Straight Solder Jack
BNC Panel Front Mount Solder Jack, Thread length of 13.5 mm and a overall length of 31.5mm with a gold plated solder spill contact
| Complete Electronics Part No. | 10350A3 |
|---|---|
| Manufacturers Part No. | 10-350-A3 |
| Type | Panel / Bulkhead Mount |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 1GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Solder
- Mating Cycles: 250
- Contact Retention: 10N min
- Cable Retention: 50N min
- Weight: 9.6g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -30 to +70°C
- IP Rating (mated): IP64
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
