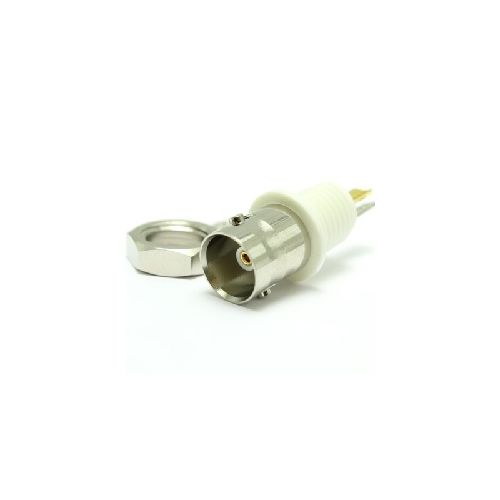

10-351-K6 | 10351K6 | Insulated BNC Panel Mount Solder Jack
Insulated BNC Panel Front Mount Solder Jack, This jack has gold plated solder bucket contact and with solder spill outer connection
| Complete Electronics Part No. | 10351K6 |
|---|---|
| Manufacturers Part No. | 10-351-K6 |
| Type | Panel / Bulkhead Mount |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 1GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Solder
- Mating Cycles: 250
- Contact Retention: 10N min
- Cable Retention: 50N min
- Weight: 6.83g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -30 to +70°C
- IP Rating (mated): IP64
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: ABS
- Centre Contact Plating: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
