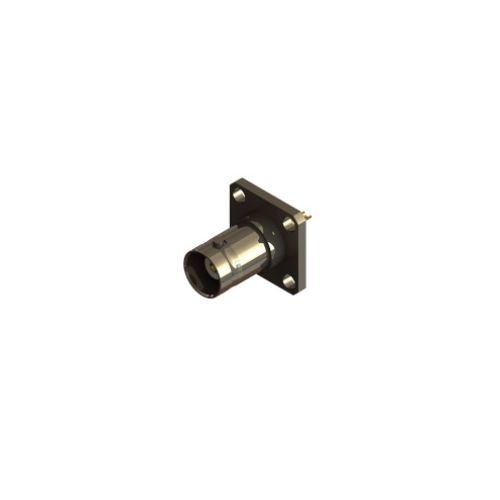

10-371-1-B3 | 103711B3 | BNC Flange Mount
BNC 50 ohm straight 17.5 mm Sq 4 hole flange mount Jack with solder contact, for applications up to 1GHz.
| Complete Electronics Part No. | 103711B3 |
|---|---|
| Manufacturers Part No. | 10-371-1-B3 |
| Type | Panel / Bulkhead Mount |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
- Impedance 50 Ohm
- Frequency Range Up to 1GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Centre Contact Termination Solder
- Outer Contact Termination Other
- Mating Cycles 500
- Contact Retention 10N min
- Cable Retention 500N min
- Weight 10.02g
- Mating Force 13.6N max
- Un-Coupling Force 13.6N max
- Operating Temperature -55 to +155 Deg C
- IP Rating ( Mated ) IP64
Materials
- Centre Contact Phosphor Bronze
- Outer Contact Brass
- Insulator PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
