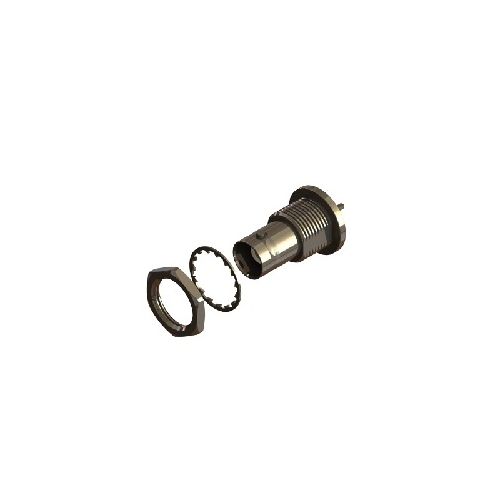

10-454-B3-23 | 10454B323 | BNC Jack Bulkhead Mount
BNC Straight Bulkhead PCB Mount Jack, 50 Ohm
| Complete Electronics Part No. | 10454B323 |
|---|---|
| Manufacturers Part No. | 10-454-B3-23 |
| Type | Panel / Bulkhead Mount |
| Working Frequency | Up To 4.5 GHZ |
Description
Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 6GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS3 Compliant
Centre Contact Termination Solder
Outer Contact Termination Solder
Mating Cycles 500
Contact Retention 10N min
Cable Retention 50N min
Weight 16.12g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1
