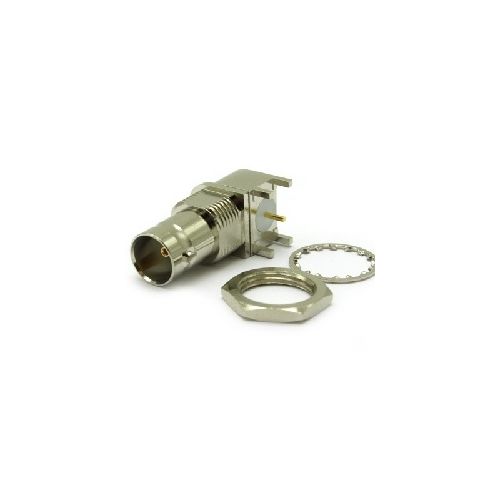

10-470-1-B36 | 104701B36 | BNC R/A PCB Mount Bulkhead Jack
BNC True 75 ohm R/A Bulkhead PCB jack, Gold plated centre contact, Nickel plated body, Low Profile, 2mm Legs
| Complete Electronics Part No. | 104701B36 |
|---|---|
| Manufacturers Part No. | 10-470-1-B36 |
| Type | PCB Mounting |
| Working Frequency | Up To 4.5 GHZ |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 4.5GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
- Return Loss [email protected]
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Solder
- Mating Cycles: 500
- Contact Retention: 10N min
- Cable Retention: 50N min
- Weight: 18.05g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -55 to +155°C
- IP Rating (mated): IP64
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
