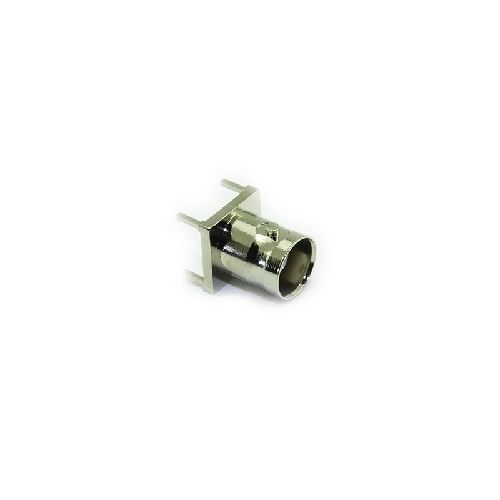

10-473-A3 | 10473A3 | BNC Straight PCB
BNC Straight PCB Jack 50 Ohm, 12.7 mm Square Base
| Complete Electronics Part No. | 10473A3 |
|---|---|
| Manufacturers Part No. | 10-473-A3 |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS3 Compliant
Centre Contact Termination Solder
Outer Contact Termination Solder
Mating Cycles 500
Contact Retention 10N min
Cable Retention 50N min
Weight 4.3g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64
Materials
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1
