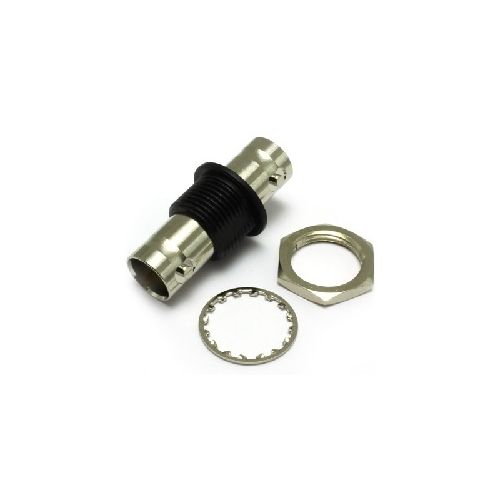

10-503-B36 | 10503B36| BNC Insulated Jack to Jack Adaptor
BNC True 75ohm Insulated Bulkhead Jack to Jack High Mate Adaptor. Gold plated centre contact, for use up to 4.5GHz.
| Complete Electronics Part No. | 10503B26 |
|---|---|
| Manufacturers Part No. | 10-503-B36 |
| Working Frequency | Up To 4.5 GHZ |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 4.5GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Mating Cycles: 500
- Contact Retention: 10N min
- Cable Retention: 50N min
- Weight: 14.37
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -35 to +70°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Body Insulation: Black ABS
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating: Nickel
- Supplied with a 15mm AF Hexagon Nut and Spring Washer
- Pack Size 1
