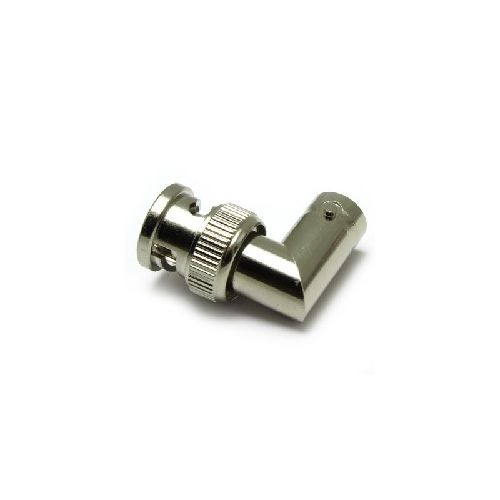

10-520-A0 | 10520A0 | BNC Right Angle Plug to Jack Adaptor
BNC 75 ohm Plug to Jack Right Angle adaptor suitable for applications up to 1GHz,Gold centre contact
| Complete Electronics Part No. | 10520A0 |
|---|---|
| Manufacturers Part No. | 10-520-A0 |
| Type | Right Angled |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 1GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
- Return Loss: -30dB@6GHz
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Mating Cycles: 250
- Weight: 16.2g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -30 to +70°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: Delrin
- Centre Contact Plating: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
