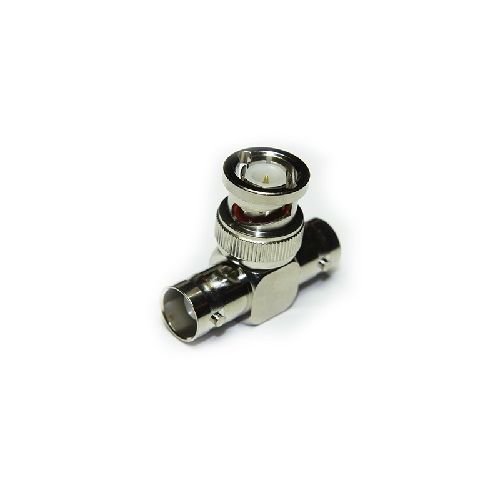

10-523-A3 | 10523A3 | BNC 'T' adaptor, Jack to Plug to Jack
BNC 50 ohm 'T' adaptor, Jack to Plug to Jack. Gold plated centre contact, suitable for use up to 1 GHz
| Complete Electronics Part No. | 10523A3 |
|---|---|
| Manufacturers Part No. | 10-523-A3 |
| Type | T Adaptor |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
- Impedance 50 Ohm
- Frequency Range Up to 1GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Mating Cycles: 250
- Contact Retention: 10N min
- Cable Retention: 50N min
- Weight: 20.9g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -30 to +70°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: Delrin
- Centre Contact Plating: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
