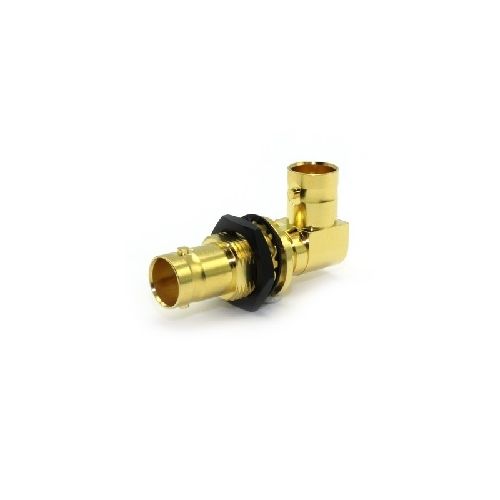

10-538-W66 | 10538W66 | BNC R/A Bulkhead Jack to Jack Adaptor
'KORUS' 6GHz BNC True 75 ohm Right Angle bulkhead Jack to Jack Adaptor suitable for applications up to 6GHz.
| Complete Electronics Part No. | 10538W66 |
|---|---|
| Manufacturers Part No. | 10-538-W66 |
| Type | Panel / Bulkhead Mount |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 6GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
- Return Loss: -19dB@6GHz
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Mating Cycles: 500
- Weight: 23.74g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Bayonet Cap: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating: Gold
- Pack Size 1
