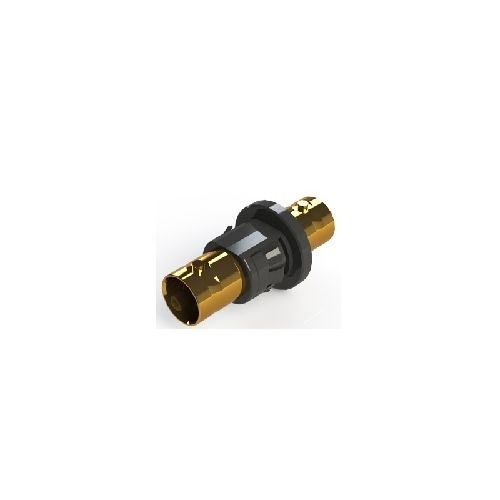

10-550-W126 | 10550W126 | BNC Bulkhead Jack to Jack Adaptor
BNC True 75 ohm insulated 'Push-Fit' jack to jack bulkhead adaptor. No fixing nut needed, 2.0mm and 3.0mm Panel Thickness
| Complete Electronics Part No. | 10550W126 |
|---|---|
| Manufacturers Part No. | 10-550-W126 |
| Type | Panel / Bulkhead Mount |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 18GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Mating Cycles: 500
- Contact Retention: 10N max
- Cable Retention: 50N max
- Weight: 9.83g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -30 to +70°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- Retaining Cli: PA46 Stanyl
- Centre Contact Plating: Gold
- Outer Contact Plating: Gold
- Panel Sizes: 2 and 3mm
- Pack Size 1
