10-850-Z | 10850Z | BNC Plug Dustcap With Chain

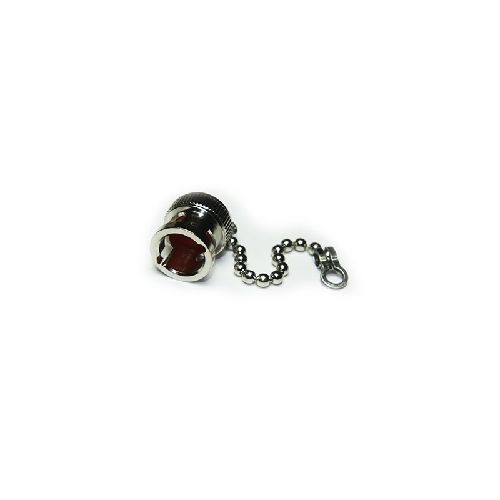

BNC Plug Dustcap With Chain
| Complete Electronics Part No. | 10850Z |
|---|---|
| Manufacturers Part No. | 10-850-Z |
| Type | Dust Cap |
Description
Electrical Specification
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS3 Compliant
Mating Cycles: 250
Contact Retention: 10N min
Cable Retention: 50N min
Weight: 8.2G
Mating Force: 13.6N max
Un-Coupling Force: 13.6N max
Operating Temperature: -55 to +155°C
IP Rating (Mated): IP64
Materials
Centre Contact: Phosphor Bronze
Outer Contact: Brass
Insulator: PTFE
Bayonet Cap
Centre Contact Plating: Gold
Outer Contact Plating: Nickel
Straight 4 hole flange mount plug with solder bucket contact
Pack Size 1
