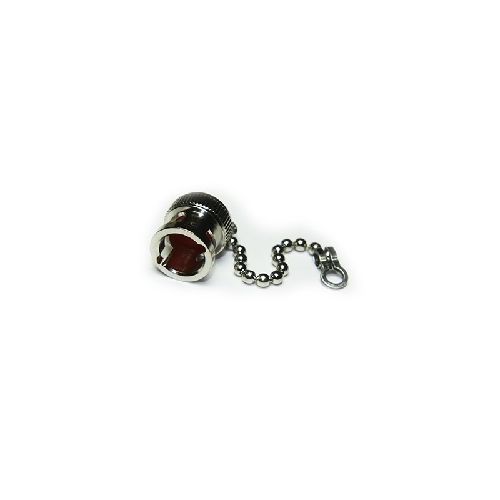

10-850--Z | 10850Z | BNC Plug Dustcap With Chain
BNC plug dust cap with chain for protection of unmated BNC jacks
| Complete Electronics Part No. | 10850Z |
|---|---|
| Manufacturers Part No. | 10-850--Z |
| Type | Dust Cap |
Description
Electrical Specification
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Mating Cycles: 250
- Contact Retention: 10N min
- Cable Retention: 50N min
- Weight: 9.2g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
