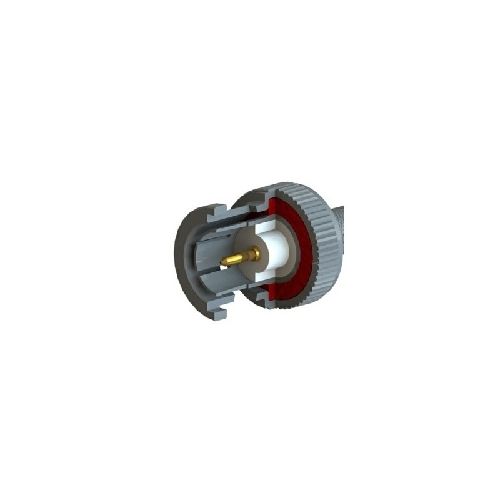

10-870-3 | 108703 | BNC 3dB Male Attenuator
BNC 3dB Attenuator 75 Ohm, The easy to use coupling make BNC one of the most popular general purpose connectors
| Complete Electronics Part No. | 108703 |
|---|---|
| Manufacturers Part No. | 10-870-3 |
| Type | Attenuator |
| Working Frequency | Up To 3 GHz |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 3GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Mating Cycles: 250
- Contact Retention: 10N min
- Cable Retention: 50N min
- Weight:
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating: Nickel
- Bayonet Cap: Brass
- Pack Size 1
