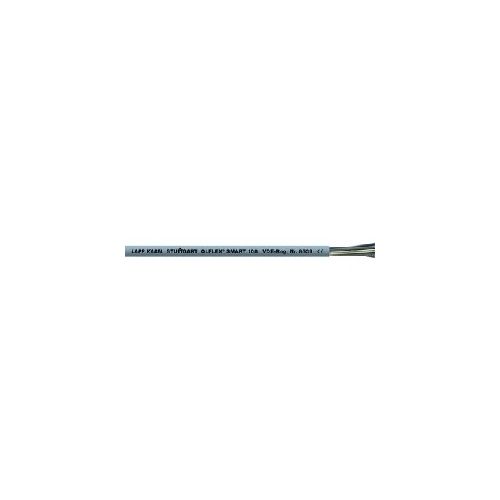

10070099 | OLFLEX SMART 108 7 G 0.5 | PVC Control Cable
10070099, VDE-registered PVC control cable, flexible and numbered , No of cores and core diameter: 7 G 0.5mm²
| Complete Electronics Part No. | 10070099 |
|---|---|
| Manufacturers Part No. | 10070099 |
| Number of Conductors: | 7 |
| Conductor Size: | 0.5mm² |
Description
OLFLEX SMART 108 7 G 0.5
VDE-registered PVC control cable, flexible and numbered
- No of cores and core diameter: 7 G 0.5mm²
- Nominal Voltage 300/500 V
- with GN-YE protective conductor
- Outer cable diameter 6.7mm
- Two-layer PVC outer sheath, silvergrey
- Core ID: Black with white numbers acc. to VDE 0293-1
- Fine-wire strand made of bare copper wires
- Flame-retardant according IEC 60332-1-2
- Good chemical resistance
- Occasional flexing temperature range: -5°C to +70°C
- Fixed installation temperature range: -40°C to +80°C
- Reel Length 100 Metres
