10183000 | EPIC H-BE 10 BCM | Lapp Epic® H-BE Insert

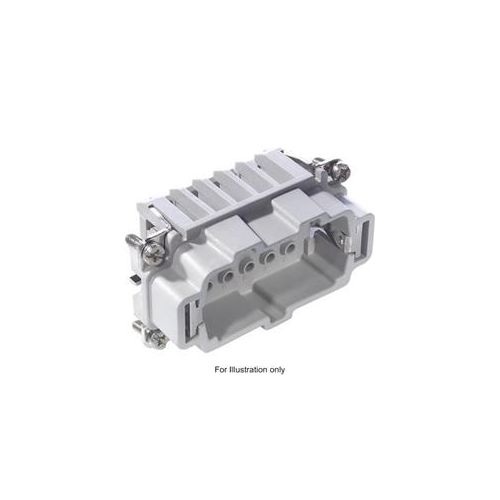

Lapp Epic® H-BE Insert EPIC H-BE 10 BCM
More Information
Complete Electronics Part No. 10183000
Manufacturers Part No. EPIC H-BE 10 BCM
Lapp Rectangular Type Insert
Lapp Rectangular Range H-BE Insert
Number of poles 10+PE
Male/Female: Female
Termination: Crimp
Rated Voltage: 500V
Rated Current: 16A
Description

10183000 / EPIC H-BE 10 BCM

Lapp Epic® H-BE Insert EPIC H-BE 10 BCM

  • Proven Standard Insert For Easy Assembly
  • Number of Contacts: 10+PE
  • Rated Voltage: IEC 500V
  • Rated Current: IEC 16A
  • Termination: Crimp
  • Contact Type: Female
  • Connection Cross Section : 0.5 - 2.5mm²
  • Contacts: Copper Alloy, Hard Silver / Gold Plated
  • Temperature Range: -40°C to +100°C
  • Suitable Housing: Ultra H-B 10, H-B 10 and QUICK & EASY Mount
  • Suitable Contact: Epic® H-BE 2.5 Machined
  •                    ***Contacts to be purchased separately ***
