10184400 | H-EE 32 SC | Lapp Epic® H-EE Insert

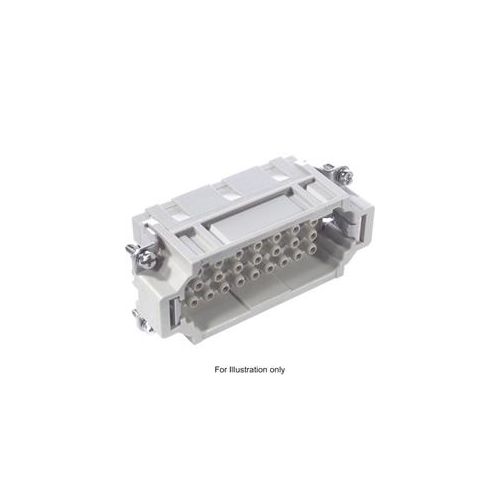

Lapp Epic® H-EE Insert H-EE 32 SC
| Complete Electronics Part No. | 10184400 |
|---|---|
| Manufacturers Part No. | H-EE 32 SC |
| Lapp Rectangular Type | Insert |
| Lapp Rectangular Range | H-BE Insert |
| Number of poles | 32+PE |
| Male/Female: | Male |
| Termination: | Crimp |
| Rated Voltage: | 500V |
| Rated Current: | 16A |
Description
10184400 / H-EE 32 SC
Lapp Epic® H-EE Insert H-EE 32 SC
- Insert With High Contact Density Based on H-BE Series
- Number of Contacts: 32+PE
- Rated Voltage: IEC 500V
- Rated Current: IEC 16A
- Termination: Crimp
- Contact Type:Male
- Connection Cross Section : 0.5 - 4.0mm²
- Contacts: Copper Alloy, Hard Silver / Gold Plated
- Temperature Range: -40°C to +100°C
- Suitable Housing: Ultra H-B 16, H-B 16 and QUICK & EASY Mount
- Suitable Contact: Epic® H-BE 2.5 Machined
- Inserts with Higher Density Contacts Available (H-EE 64, H-EE 92)
***Contacts to be purchased separately ***
