10186000 | EPIC H-BE 24 SCM | Lapp Epic® H-BE Insert

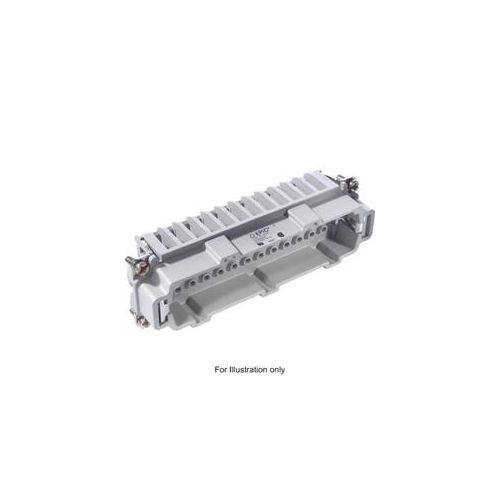

Lapp Epic® H-BE Insert EPIC H-BE 24 SCM
| Complete Electronics Part No. | 10186000 |
|---|---|
| Manufacturers Part No. | EPIC H-BE 24 SCM |
| Lapp Rectangular Type | Insert |
| Lapp Rectangular Range | H-BE Insert |
| Number of poles | 24+PE |
| Male/Female: | Male |
| Termination: | Crimp |
| Rated Voltage: | 500V |
| Rated Current: | 16A |
Description
10186000 / EPIC H-BE 24 SCM
Lapp Epic® H-BE Insert EPIC H-BE 24 SCM
- Proven Standard Insert For Easy Assembly
- Number of Contacts: 24+PE
- Rated Voltage: IEC 500V
- Rated Current: IEC 16A
- Termination: Crimp
- Contact Type:Male
- Connection Cross Section : 0.5 - 4.0mm²
- Contacts: Copper Alloy, Hard Silver / Gold Plated
- Temperature Range: -40°C to +100°C
- Suitable Housing: Ultra H-B 24, H-B 24 and QUICK & EASY Mount
- Suitable Contact: Epic® H-BE 2.5 Machined
- Inserts with Higher Density Contacts Available (H-BE 32, H-BE 48)
***Contacts to be purchased separately ***
