10196000 | EPIC H-BE 24 SS | Lapp Epic® H-BE Insert

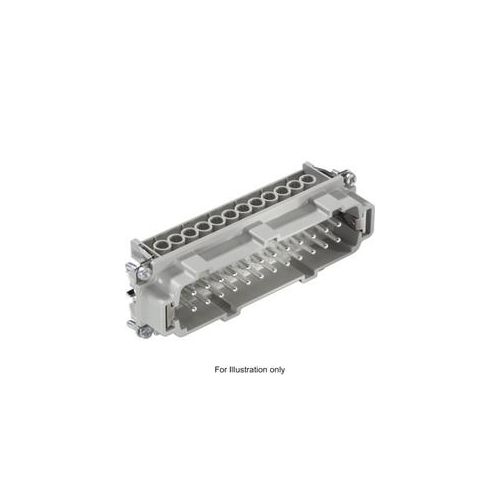

Lapp Epic® H-BE Insert EPIC H-BE 24 SS
| Complete Electronics Part No. | 10196000 |
|---|---|
| Manufacturers Part No. | EPIC H-BE 24 SS |
| Lapp Rectangular Type | Insert |
| Lapp Rectangular Range | H-BE Insert |
| Number of poles | 24+PE |
| Male/Female: | Male |
| Termination: | Screw |
| Rated Voltage: | 500V |
| Rated Current: | 16A |
Description
10196000 / EPIC H-BE 24 SS
Lapp Epic® H-BE Insert EPIC H-BE 24 SS
- Proven Standard Insert For Easy Assembly
- Number of Contacts: 24+PE
- Rated Voltage: IEC 500V
- Rated Current: IEC 16A
- Termination: Screw - with Wire Protection
- Contact Type:Male
- Connection Cross Section : 0.5 - 2.5mm²
- Contacts: Copper Alloy, Hard Silver Plated
- Temperature Range: -40°C to +100°C
- Suitable Housing: Ultra H-B 24, H-B 24 and QUICK & EASY Mount
- Inserts with Higher Density Contacts Available (H-BE 32, H-BE 48)
