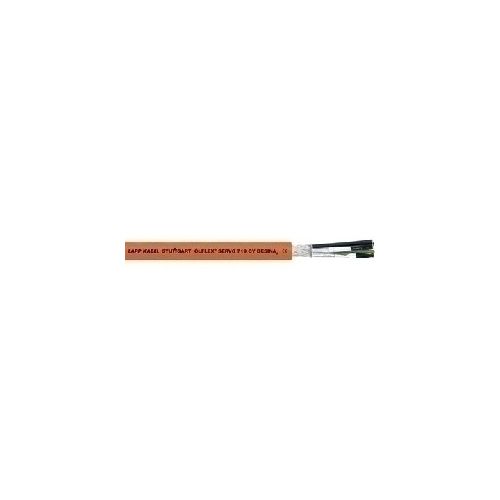

1020022 | OLFLEX SERVO 719 CY - 4 G 6 + (2 x 1,5) | Servo Cable
Screened, low capacitive servo cable for fixed installation or occasional flexing with UL/cUL AWM certification
| Complete Electronics Part No. | 1020022 |
|---|---|
| Manufacturers Part No. | 1020022 |
Description
OLFLEX SERVO 719 CY - 4 G 6 + (2 x 1,5)
Screened, low capacitive servo cable with UL/cUL AWM certification
- With GN-YE protective conductor
- For fixed installation or occasional flexing
- Number of Cores and mm² per Conductor: 4 G 6 + (2 x 1,5)
- Outer Diameter: 17mm
- Successor of OLFLEX SERVO 700 CY and OLFLEX SERVO 709 CY
- Tinned copper screen braiding
- PVC outer sheath, orange (RAL 2003)
- Core insulation: polypropylene (PP)
- EMC-compliant
- Oil-resistant
- Nominal voltage: IEC U0/U: 600/1000 V
- Fixed Installation temp range: -40°C to +80°C
- Occasional Flexing temp range: -5°C to +70°C
- Reel Length: 50M
