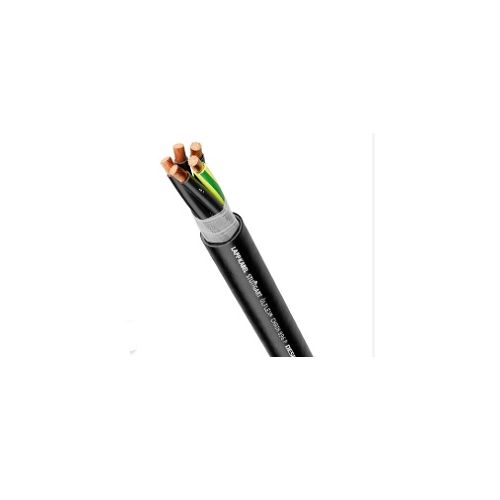

1023229 | OLFLEX CHAIN 896P 4 G 1,5 | Harsh Conditions Cable
Highly flexible, halogen-free power cable, Number of Conductors: 4, Conductor Cross section: 1.5mm², Cable Outer Diameter: 9.6mm, With GN-YE conductor
| Complete Electronics Part No. | 1023229 |
|---|---|
| Manufacturers Part No. | 1023229 |
| Series: | OLFLEX CHAIN 896P |
| Number of Conductors: | 4 |
| Conductor Cross Section: | 1.5mm² |
| Rated Voltage: | 600 / 1000V |
| Cable Type: | Highly Flexible cable |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
| Cable Jacket: | PUR |
| Cable Length: | 100 Metres |
Description
1023229 | OLFLEX CHAIN 896P 4G1.5
Highly flexible, halogen-free multi core power cable
Number of Conductors: 4
Conductor Cross section: 1.5mm²
Cable Outer Diameter: 9.6mm
With GN-YE protective conductor
Conductor material: Bare Copper
Core colour code: Numbers
Conductor design: IEC 60228 class 6: extra-fine wire
Nominal voltage: U0/U: 0,6/1 kV AC rms according to IEC
Core insulation: Polypropylene (PP)
Outer Sheath material: Polyurethane (PUR)
Cable Sheath colour: Black (RAL 9005)
Wrapping over stranding: Fleece wrapping
Shielded: No
Core colour code: Numbers
Conductor design: IEC 60228 class 6: extra-fine wire
Nominal voltage: U0/U: 0,6/1 kV AC rms according to IEC
Core insulation: Polypropylene (PP)
Outer Sheath material: Polyurethane (PUR)
Cable Sheath colour: Black (RAL 9005)
Wrapping over stranding: Fleece wrapping
Shielded: No
Oil-resistant - Yes
Chemical resistant - Yes
UV-resistant - Yes
Ozone Resistant - Yes
Halogen Free - Yes
Flame retardant - Yes
Weather resistant - Yes
PWIS-free - Yes, acc. to VDMA 24364-B2-L
Chemical resistant - Yes
UV-resistant - Yes
Ozone Resistant - Yes
Halogen Free - Yes
Flame retardant - Yes
Weather resistant - Yes
PWIS-free - Yes, acc. to VDMA 24364-B2-L
Temperature Range Fixed Install: -50°C to +90°C
Temperature Range Flexing: -40°C to +90°C
Cable Length: 100M
Lapp part number: 1023229
